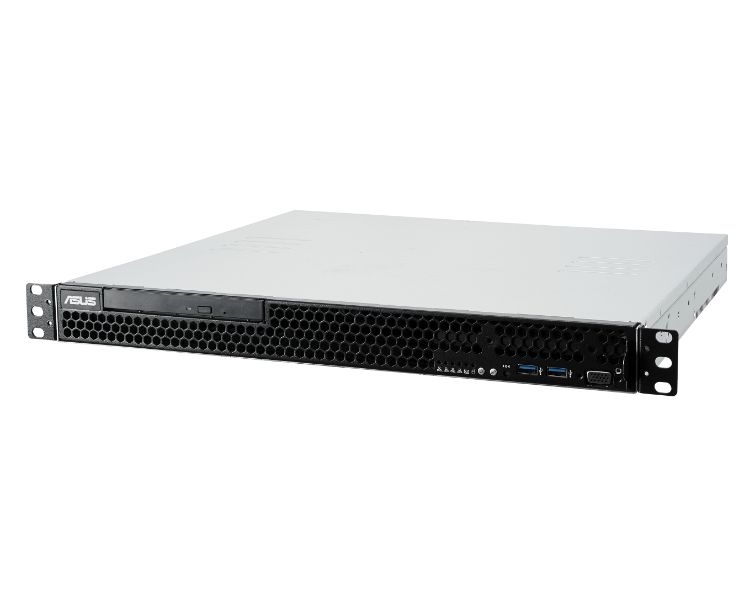

SERVIDOR ASUS RS100-E10-PI2

Especificacones:. . Processor / System Bus. . . 1 x Socket LGA1151. Intel® Xeon® processor E-2100 family. Intel® Xeon® processor E-2200 family. The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor. *Refer to support page for more information. . Generation. E10. . Core Logic. Intel® C242 Chipset. . Memory. Total Slots : 4 (2-channel). Capacity : Maximum up to 128GB UDIMM. Memory Type :. DDR4 2666/2400 UDIMM non ECC and with ECC. Memory Size :. 32GB, 16GB, 8GB, 4GB UDIMM. * Refer to support page for more information. . Expansion Slots. Total PCI/PCI-X/PCIe/PIKE Slots: 1. 1 x PCIe x16 (x16 Gen3 Link). . Storage. SATA Controller :. Intel® C242 Chipset. 2 x Internal 3.5' HDD. 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *. Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows). (Support Software RAID 0, 1 ). . Drive Bays. with ODD, up to 2 x3.5'' disk bay or option 1x3.5''+2x2.5'' disk bay support. without ODD, up to 2 x3.5'' disk bay or option 1x3.5''+4x2.5'' disk bay support. . Auxiliary Storage FDD/CD/DVD. 1 x Slim-type Optical Drive Bay. Options: No Device / DVD-RW. . Networking. 4 x Intel® I210AT + 1 x Mgmt LAN. . Graphic. Aspeed AST2500 with 32MB VRAM. . Front I/O Ports. 2 x USB 3.0 ports. 1 x VGA port. . Rear I/O Ports. 1 x External Serial Port. 4 x RJ-45 ports. 2 x USB 3.1 ports. 2 x USB 3.0 ports. 1 x VGA port. 1 x RJ-45 ports (One for ASMB9-iKVM)(Optional). . Switch/LED. Rear Switch/LED:. 1 x Q-Code/Port 80 LED. 1 x Power switch. Front Switch/LED:. 1 x Power switch/LED. 1 x Location switch/LED. 1 x Reset switch. 1 x HDD Access LED. 1 x Message LED. LAN 1-4 LED. . OS Support. Windows® Server 2016. RedHat® Enterprise Linux. SuSE® Linux Enterprise Server. CentOS. *Subject to change without any notice. . Management Solution. ASUS Control Center Enterprise (Optional). Optional ASMB9-iKVM for KVM-over-IP. . Regulatory Compliance. BSMI, CE, RCM, FCC(Class B). . Dimensions. 380mm x 430mm x 44mm. 14.96'' x 16.93'' x 1.73''. . Form Factor. 1U. . Weight. Net Weight: 7.5 Kg. Gross Weight: 11.72 Kg. . Power Supply. Single 250W 80 PLUS Gold Power Supply. Rating: 100-240Vac,4A ,50-60Hz, Class I. Single 350W 80 PLUS Gold Power Supply. Rating: 100-240Vac,6A-3A ,50-60Hz, Class I. . Environment. Operating temperature: 10ºC ~ 35ºC. Non operating temperature: -40ºC ~ 70ºC. Non operating humidity: 20% ~ 90% ( Non condensing). . Note. * 2 x M.2 (NGFF 22110/2280/2260/2242). PCIE or SATA signal, gray SATA port will be disabled, when M.2 is used with SATA signal.. . Only for Search. Rack Server
