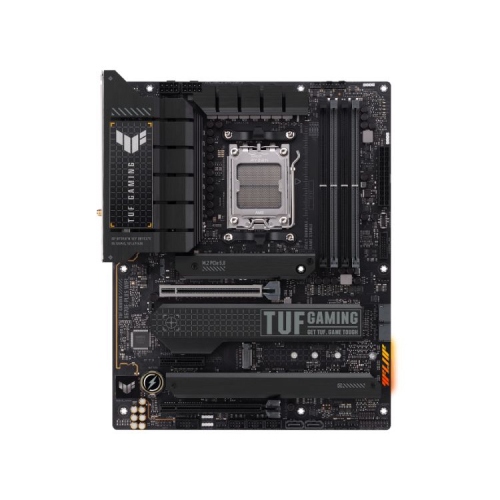

PLACA BASE TUF GAMING X670E-PLUS WIFI ASUS

Socket AMD AM5:/preparado para los procesadores de sobremesa AMD Ryzen™ serie 7000.. Solución de alimentación mejorada: 14 + 2 etapas de potencia agrupadas, PCB de ocho capas, 8 + 8 ranuras ProCool, bobinas de aleación y condensadores duraderos para un suministro de energía estable.. Conectividad de última generación: PCIe® 5.0, USB 3.2 Gen2x2 de tipo C®, USB 3.2 Gen 2 de tipo C frontal, compatible con USB4®.. Diseñado para jugar en línea: Ethernet Realtek de 2,5 Gb, WiFi 6E y TUF LANGuard.. Cancelación de ruido bidireccional con IA: reduce el ruido de fondo del micrófono y la salida de audio para ofrecer una comunicación nítida al jugar o realizar videoconferencias.. Refrigeración completa: disipadores térmicos del VRM y PCH más grandes, disipadores térmicos M.2, cabezales de ventiladores híbridos y utilidad Fan Xpert 4 en Armoury Crate.. Efectos RGB de Aura Sync: elegante diseño de iluminación en los bordes, cabezales RGB direccionables y soporte para cabezales con tiras RGB.. . Especificaciones:. . CPU. . AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*. * Refer to www.asus.com for CPU support list.. . Chipset. . AMD X670. . Memoria. . 4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports AMD Extended Profiles for Overclocking (EXPO™). OptiMem II. * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.. ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.. . Gráficos. . 1 x DisplayPort**. 1 x HDMI® port*** . * Graphics specifications may vary between CPU types.. ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.. *** Supports 4K@60Hz as specified in HDMI 2.1. . . Ranuras de expansión. . AMD Ryzen™ 7000 Series Desktop Processors*. -1 x PCIe 5.0 x16 slot. AMD X670 Chipset. -1 x PCIe 4.0 x16 slot (supports x4 mode). -1 x PCIe 4.0 x4 slots. * Please check PCIe bifurcation table at https://www.asus.com/support/FAQ/1037507/.. . Almacenamiento. . Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*. AMD Ryzen™ 7000 Series Desktop Processors. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). AMD X670 Chipset. M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)**. M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). 4 x SATA 6Gb/s ports. *AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.. ** M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled.. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. TUF LANGuard. . Wireless & Bluetooth. . Wi-Fi 6E. 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax). Supports 2.4/5/6GHz frequency band*. Bluetooth v5.2. * WiFi 6E 6GHz regulatory may vary between countries.. . USB. . Rear USB (Total 10 ports). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®). 5 x USB 3.2 Gen 1 ports (5 x Type-A). Front USB (Total 9 ports). 1 x USB 3.2 Gen 2 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 3 x USB 2.0 headers support additional 6 USB 2.0 ports. . Audio. . Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*. - Impedance sense for front and rear headphone outputs. - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in). - Supports up to 32-Bit/192 kHz playback*. Audio Features. - Audio shielding. - Premium audio capacitors. - Dedicated audio PCB layers. - Audio cover. - Unique de-pop circuit. * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.. . Puertos de E/S del panel posterior. . 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C®). 5 x USB 3.2 Gen 1 ports (5 x Type-A). 1 x DisplayPort. 1 x HDMI® port. 1 x Wi-Fi Module. 1 x Realtek 2.5Gb Ethernet port. 5 x Audio jacks. 1 x BIOS FlashBack™ button. . Conectores de E/S internos. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 4 x 4-pin Chassis Fan headers. 1 x W_PUMP+ header. Power related. 1 x 24-pin Main Power connector. 2 x 8-pin +12V Power connectors. Storage related. 4 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 2 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 3 x USB 2.0 headers support additional 6 USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x AURA RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thermal Sensor header. 1 x Thunderbolt™ header. . BIOS. . 256 Mb Flash ROM, UEFI AMI BIOS. Manejabilidad. WOL by PME, PXE. . Factor de forma. . ATX Form Factor. 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
