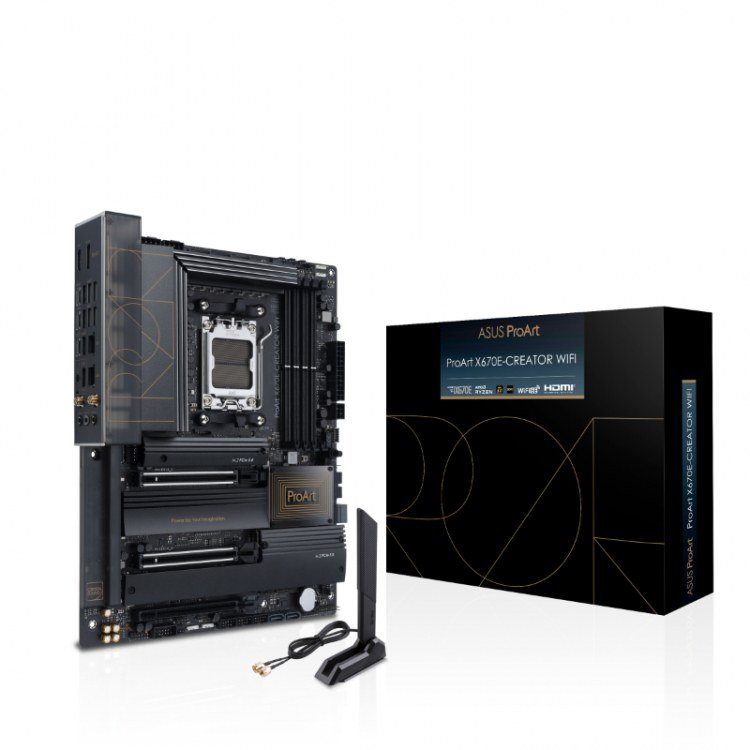

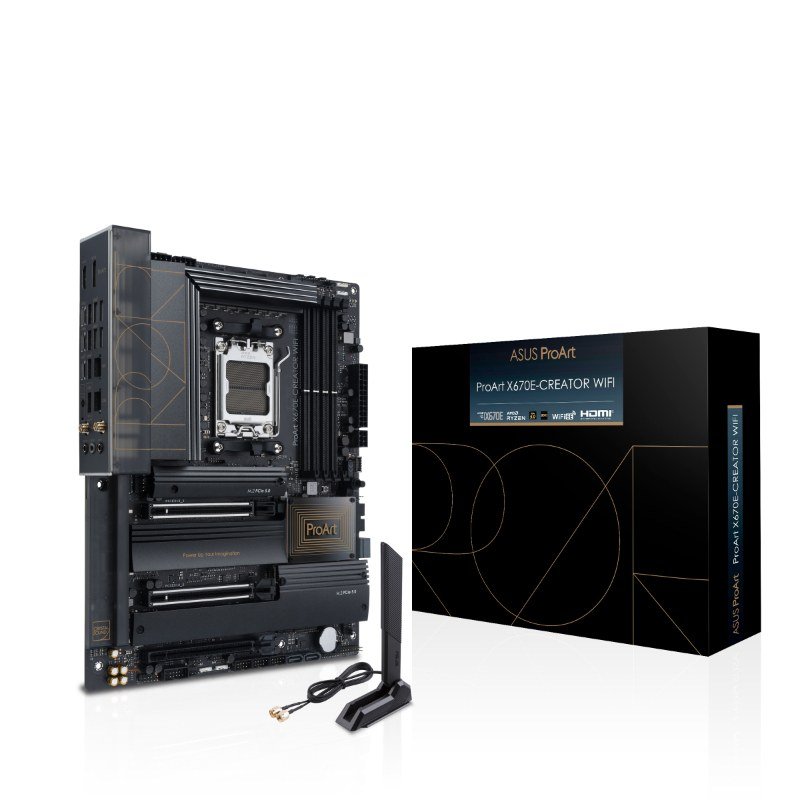

PLACA BASE ProArt X670E-CREATOR WIFI ASUS

Socket AM5: preparado para las CPU AMD Ryzen™ serie 7000.. Solución de alimentación sólida: 16 + 2 etapas de potencia agrupadas, conectores de alimentación ProCool, bobinas de aleación de gran calidad y condensadores duraderos.. Conectividad preparada para el futuro: dos puertos USB4®, Ethernet de 10 Gb y 2,5 Gb, WiFi 6E, dos ranuras PCIe® 5.0 y dos PCIe 4.0 M.2 y un conector USB 3.2 Gen 2x2 en el panel frontal con Quick Charge 4+.. Tecnología de overclocking exclusiva: AI Overclocking, Dynamic OC Switcher, y Ryzen Core Flex.. Diseño DIY fácil de usar: ranura PCIe Q-Release, M.2 Q-Latch, SafeSlot, SafeDIMM, escudo de entradas y salidas premontado, BIOS FlashBack™, Q-Connector.. ProArt te da más: cancelación de ruido bidireccional con IA para ofrecer una comunicación clara en línea y ProArt Creator Hub con CreationFirst para el control del sistema en un solo lugar.. Especificaciones:. CPU. . AMD Socket AM5 for AMD Ryzen™ 7000 Series/ 8000 Series Desktop Processors*. * Refer to www.asus.com for CPU support list.. AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*. * Refer to www.asus.com for CPU support list.. . Chipset. . AMD X670. . Memoria. . 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports AMD Extended Profiles for Overclocking (EXPO™). OptiMem II. * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.. ** Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.. . Gráficos. . 1 x HDMI® port**. 2 x USB4® ports support USB Type-C® display outputs***. * Graphics specifications may vary between CPU types.. ** Supports 4K@60Hz as specified in HDMI 2.1. . *** Supports max. 8K@60Hz as specified in DisplayPort 1.4.. **** Output at USB4_EC1 and USB4_EC2, each requires a USB-C® to DisplayPort adapter cable. VGA resolution support depends on processors' or graphic cards' resolution.. . Ranuras de expansión. . AMD Ryzen™ 7000 Series/ 8000 Series Desktop. Processors*. 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes). AMD X670 Chipset. 1 x PCIe 4.0 x16 slot (supports x2 mode)**. * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).. ** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3.. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. AMD Ryzen™ 7000 Series Desktop Processors*. 2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes). AMD X670 Chipset. 1 x PCIe 4.0 x16 slot (supports x2 mode)**. * Please check the PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).. ** PCIEX16_3 shares bandwidth with M.2_3 slot. Please adjust in BIOS setting to enable PCIEX16_3.. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. . Almacenamiento. . Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*. AMD Ryzen™ 7000 Series/ 8000 Series Desktop. Processors. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). AMD X670 Chipset. M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**. M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). 4 x SATA 6Gb/s ports. *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.. ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode.. Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*. AMD Ryzen™ 7000 Series Desktop Processors. M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode). AMD X670 Chipset. M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)**. M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). 4 x SATA 6Gb/s ports. *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.. ** M.2_3 slot shares bandwidth with PCIEX16_3. When PCIEX16_3 is in operation after adjusting in BIOS settings, M.2_3 slot will only run at PCIe x2 mode.. . Ethernet. . 1 x Marvell® AQtion 10Gb Ethernet. 1 x Intel® 2.5Gb Ethernet. ASUS LANGuard. . Wireless & Bluetooth. . Wi-Fi 6E. 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax). Supports 2.4/5/6GHz frequency band*. Bluetooth® v5.2. * WiFi 6E 6GHz regulatory may vary between countries.. . USB. . Rear USB (Total 11 ports). 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 7 x USB 3.2 Gen 2 ports (7 x Type-A). 1 x USB 2.0 port (1 x Type-A). Front USB (Total 9 ports). 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 3 x USB 2.0 headers support 6 additional USB 2.0 ports. . Audio. . Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*. - Impedance sense for front and rear headphone outputs. - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in). - Supports up to 32-Bit/192 kHz playback*. Audio Features. - Power pre-regulator reduces power input noise to ensure consistent performance. - Premium audio capacitors. - Dedicated audio PCB layers. - Audio cover. - Unique de-pop circuit. * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Puertos de E/S del panel posterior. . 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 7 x USB 3.2 Gen 2 ports (7 x Type-A). 1 x USB 2.0 port (1 x Type-A). 1 x DisplayPort (Input only). 1 x HDMI® port. 1 x Wi-Fi Module. 1 x Marvell® AQtion 10Gb Ethernet. 1 x Intel® 2.5Gb Ethernet. 3 x Audio jacks. 1 x BIOS FlashBack™ button. . Conectores de E/S internos. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 5 x 4-pin Chassis Fan headers. Power related. 1 x 24-pin Main Power connector. 2 x 8-pin +12V Power connectors. 1 x 6-pin PCIe Power connector. Storage related. 4 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®). 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports. 3 x USB 2.0 headers support 6 additional USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x Aura RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x CPU Over Voltage jumper. 1 x Front Panel Audio header (AAFP). 1 x 20-3 pin System Panel header with Chassis intrude function. 1 x Thermal Sensor header. . BIOS. . 256 Mb Flash ROM, UEFI AMI BIOS. . Manejabilidad. . WOL by PME, PXE. . Factor de forma. . ATX Form Factor. 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
