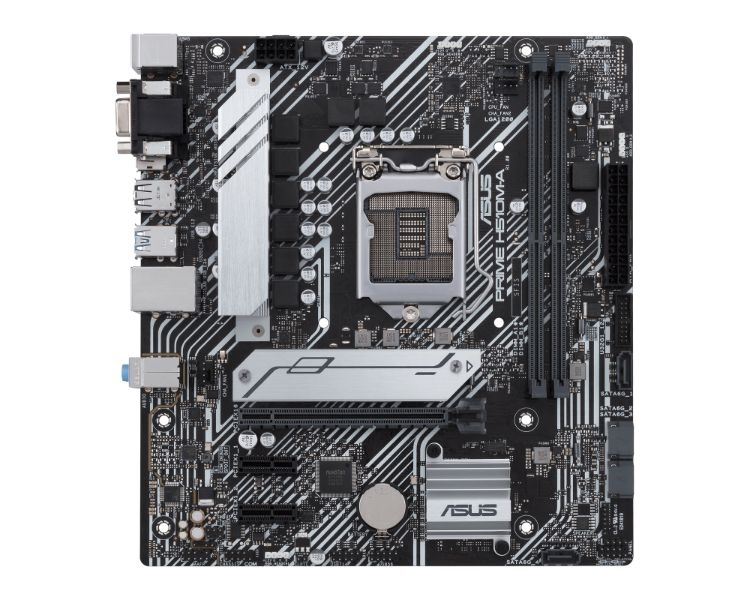

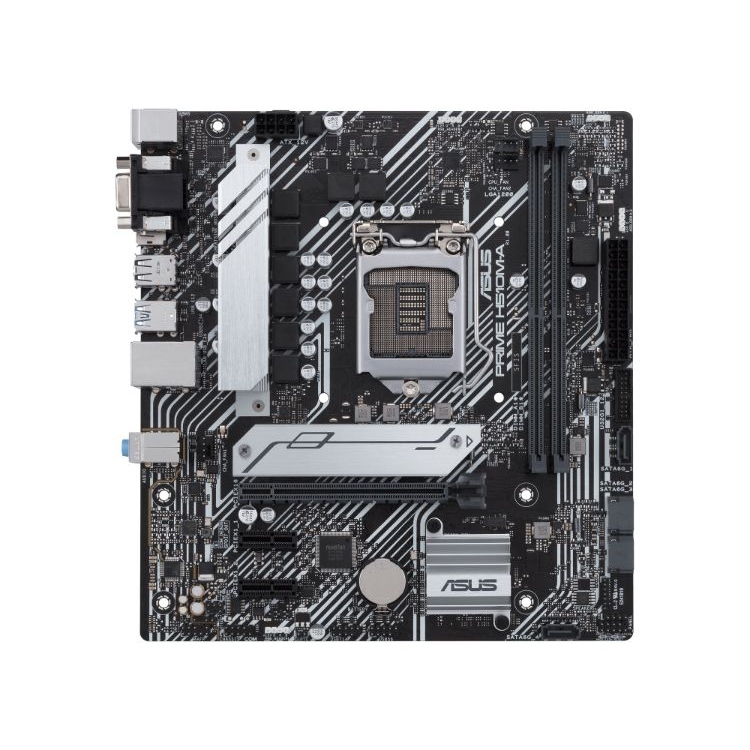

PLACA BASE PRIME H510M-A ASUS

CPU. Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® 14 nm CPU. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. . Chipset. Intel® H510 Chipset. . Memory. Memory Channels:2DDR4 (Dual Channel). Max Memory Size:64GB. DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*. . Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.. . Graphics. 1 x DisplayPort 1.4**. 1 x D-Sub. 1 x HDMI™ 2.0**. * Graphics specifications may vary between CPU types. . ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.. *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.. . Expansion Slots. Intel® 11th & 10th Gen Processors. 1 x PCIe 4.0/3.0 x16 slot. - Intel® 11th Gen processors support PCIe 4.0 x16. - Intel® 10th Gen processors support PCIe 3.0 x16. Intel® H510 Chipset. 2 x PCIe 3.0 x1 slots. . Storage. Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports. Intel® H510 Chipset. M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes). 4 x SATA 6Gb/s ports. * The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.. . Ethernet. 1 x Intel® I219-V 1Gb Ethernet. . USB. Rear USB:Total 6 ports. 2 x USB 3.2 Gen 1 ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). . Front USB:Total 6 ports. 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports. . Back Panel I/O Ports.

.
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
.
• 4 x USB 2.0 ports (4 x Type-A)
.
• 1 x DisplayPort
.
• 1 x D-Sub port
.
• 1 x HDMI™ port
.
• 1 x Intel® I219-V 1Gb Ethernet port
.
• 3 x Audio jacks
.
• 1 x PS/2 Keyboard (purple) port
.
• 1 x PS/2 Mouse (green) port
.

. . Intrernal I/O Connectors. Fan and Cooling related.

.
• 1 x 4-pin CPU Fan header
.
• 2 x 4-pin Chassis Fan headers
.

. Power related.

.
• 1 x 24-pin Main Power connector
.
• 1 x 8-pin +12V Power connector
.

. Storage related.

.
• 1 x M.2 slot (Key M)
.
• 4 x SATA 6Gb/s ports
.

. USB.

.
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
.
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
.

. Norton Anti-virus software (Free Trial version). . Form Factor.

.
• microATX
.
• 22.6cm x 21.1cm
.
