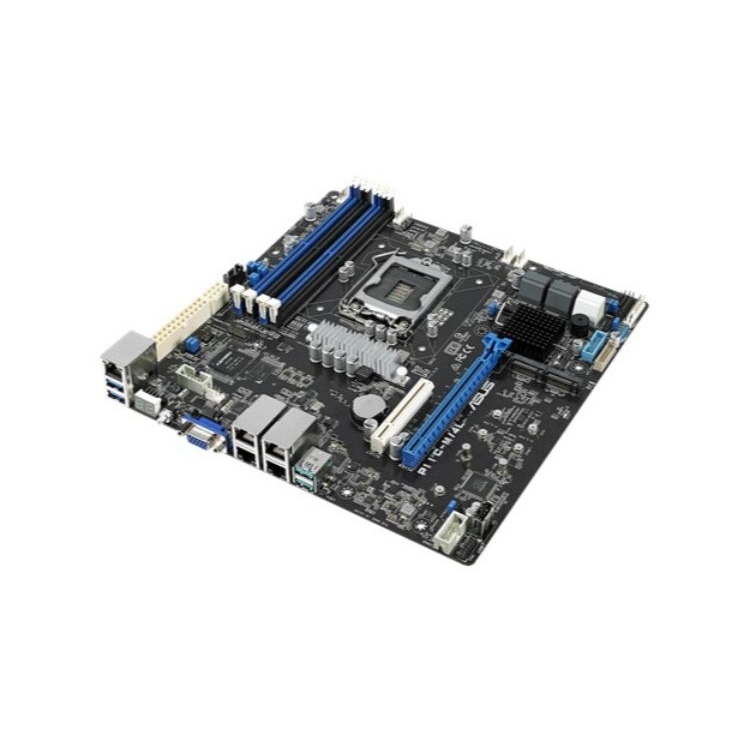

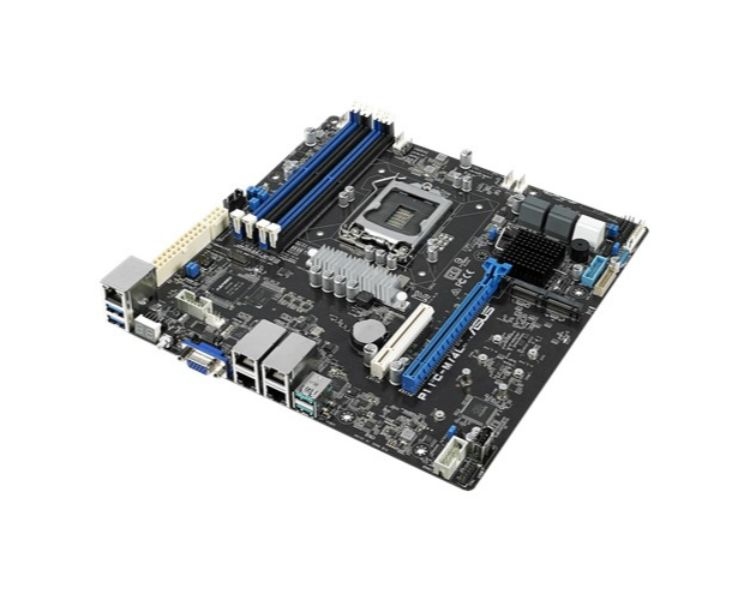

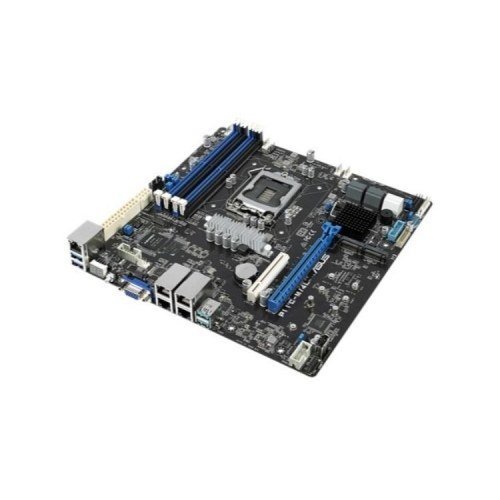

PLACA BASE ASUS SERVER P11C-M/4L

Especificaciones:. . Processor / System Bus. . 1 x Socket LGA1151. Intel® Xeon® processor E-2100 family. Intel® Xeon® processor E-2200 family. The 8th/9th generation Intel® Core™ i3/Pentium®/Celeron® Processor. Core Logic. Intel® C242 Chipset. . Memory. . Total Slots : 4 (2-channel). Capacity : Maximum up to 128GB UDIMM. Memory Type :. DDR4 2666/2400 UDIMM non ECC and with ECC. Memory Size :. 32GB, 16GB, 8GB, 4GB. * Refer to support page for more information. . Expansion Slots. . Total Slot : 2. Slot Location 6 : PCI-E x16 (Gen3 X16 Link), Auto switch to x8 link if slot 7 is occupied. Slot Location 7 : PCI-E x8 (Gen3 X8 Link). Follow SSI Location#. . Form Factor. . U ATX (9.6''x9.6'', 244mm x 244mm). ASUS Features. FAN speed control. Rack Ready (Rack and Pedestal dual use). ASUS Control Center. . Storage. . SATA Controller :. Intel® C242 Chipset. 6 x SATA3 6Gb/s ports. 2 x M.2 connector(2242/2260/2280/22110) both SATA & PCIe mode *1. Intel® Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows). (Support Software RAID 0, 1, 5, 10 ). SAS Controller :. ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional). ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional). . Networking. . 4 x Intel® I210AT + 1 x Mgmt LAN. . Graphic. . Aspeed AST2500 with 32MB VRAM. . On Board I/O. . 1 x TPM header. 1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector). 1 x COM port. 1 x USB 3.0 pin header , Up to 2 Devices. 1 x USB 2.0 pin header , Up to 2 Devices. 1 x USB connector*2. 5 x Fan Header , 4pin. 1 x SMBus. 1 x Chassis Intruder. 4 x Front LAN LED. 1 x Serial Port Header. 1 x VGA Header. 2 x M.2 Connector. 1 x Onboard header for optional management card. . Back I/O Ports. . 1 x External Serial Port. 2 x USB 3.1 Gen 2. 2 x USB 3.1 Gen 1. 1 x VGA Port. 4 x GbE LAN + 1 x Mgmt LAN
