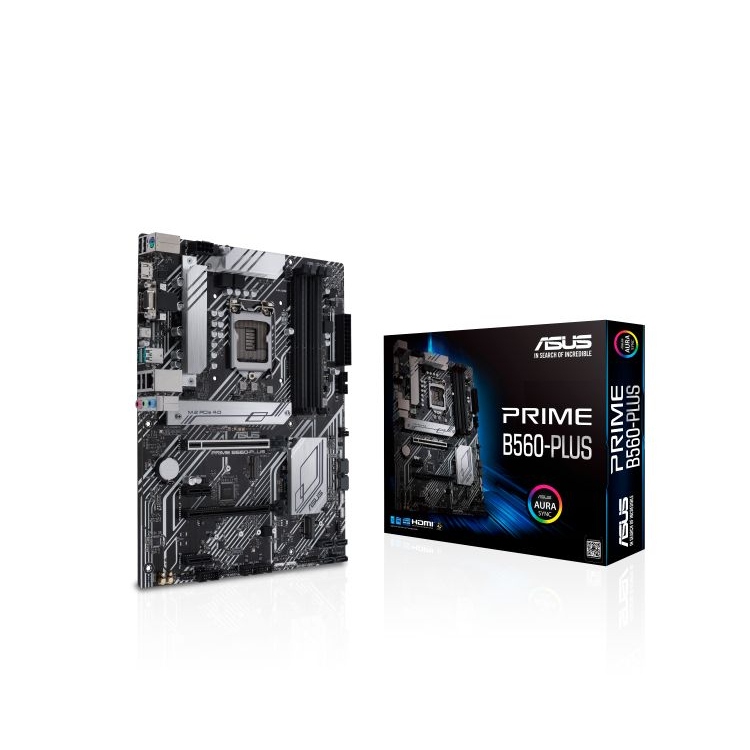

ASUS Placa Base PRIME B560-PLUS ATX LGA1200

Especificaciones:. . CPU. . Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® 14nm CPU. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. . Chipset. . B560. . Memory. . Memory Channels:4DDR4 (Dual channel). Max Memory Size:128GB. 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory*. Dual channel memory architecture. Supports Intel® Extreme Memory Profile (XMP). ASUS OptiMem. * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.. * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz.. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.. . Graphics. . 1 x DisplayPort 1.4**. 1 x D-Sub. 1 x HDMI 1.4/2.0***. *Graphics specifications may vary between CPU types.. ** For Intel® 11th & 10th processors, support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.. ***Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.. . Expansion Slots. . 1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4). Intel® 11th &10th Gen Processors. 1 x PCIe 4.0/3.0 x16 slot*. - Intel® 11th processors support PCIe 4.0 x16. - Intel®10th processors support PCIe 3.0 x16. Intel® B560 Chipset. 1 x PCIe 3.0 x16 slot (supports x4 mode)*. 2 x PCIe 3.0 x1 slots. *Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.. . Storage. . Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports. Intel® 11th Gen Processors. - M.2_1 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 4.0 x 4 ). - Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® B560 Chipset. - M.2_2 slot (Key M) type 2242/2260/2280/22110 (supports PCIE 3.0 x 4 & SATA mode modes). - 6 x SATA 6Gb/s ports. When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.. . Ethernet. . 1 x Intel® I219-V 1Gb Ethernet. ASUS LANGuard. . Wireless & Bluetooth. . M.2 slot only (Key E, CNVi & PCIe). . USB. . Rear USB:Total 7 ports. 2 x USB 3.2 Gen 2 ports (2 x Type-A). 1 x USB 3.2 Gen 1 port (1 x USB Type-C®). 4 x USB 2.0 ports. . Front USB:Total 6 ports. 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports. . Audio. . ALC887/897. Realtek ALC897 7.1-Channel High Definition Audio CODEC*. . Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192kHz playback. Audio Features. - Audio Shielding. - Premium Japanese audio capacitors. - Dedicated audio PCB layers. *A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.. . Back Panel I/O Ports. . 1 x DP port. 1 x HDMI port. 1 x D-Sub port. 3 x Audio jacks. 1 x PS/2 Keyboard/Mouse combo port. 1 x Intel® I219-V 1Gb Ethernet port. 4 x USB 2.0 ports (4 x Type-A). 2 x USB 3.2 Gen 2 ports (2 x Type-A). 1x USB 3.2 Gen 1 port (1 x USB Type-C®). . Intrernal I/O Connectors. . 1 x TB Header (for add-on TB card). Fan and cooling-related. 1 x 4-pin CPU Fan header. 3 x 4-pin Chassis Fan headers. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 2 x M.2 slots (Key M). 6 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support additional 4 USB 2.0 ports. Miscellaneous. 2 x AURA Addressable Gen 2 headers. 2 x AURA RGB headers. 1 x Clear CMOS jumper. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x S/PDIF out header. 1 x 20-3pin System Panel header with Chassis intrude function. 1 x SPI TPM header (14-1 pin). 1 x M.2 slot (key E) . 1 x Thunderbolt 4 header. . BIOS. 128 Mb Flash ROM, UEFI AMI BIOS. Form Factor. . ATX: 30.5cm x 23.4cm
