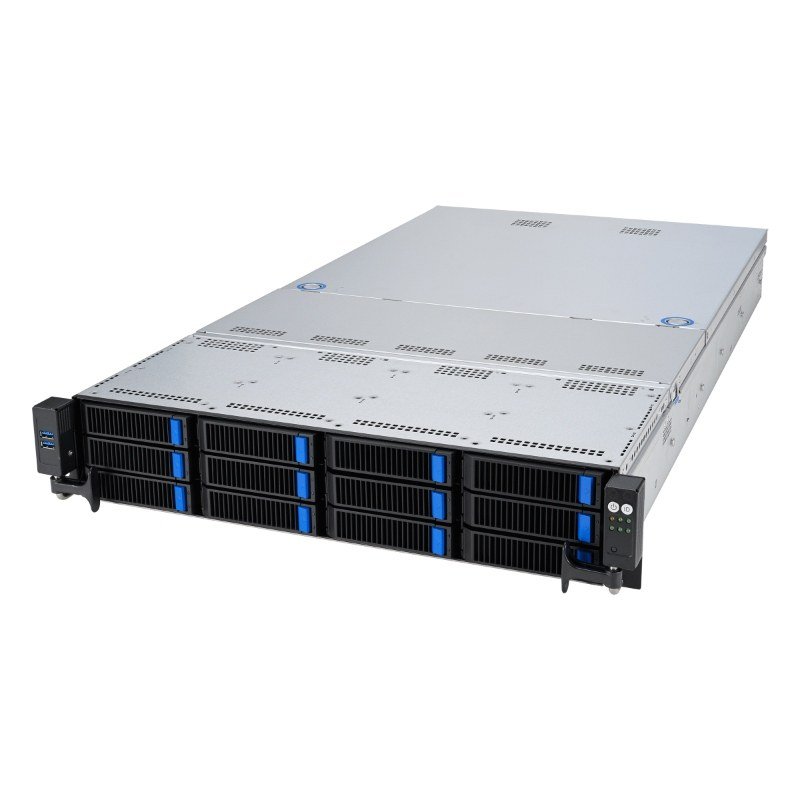

SERVIDOR ASUS RS520A-E12-RS12U

Especificaciones:. Processor / System Bus. . 1 x Socket SP5 (LGA 6096) . 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology . AMD EPYC™ 9004 Series Processors (Air cool with STD HSK up to 400W). . Memory. . 24 x DIMM slots. DDR5 4800/4400/4000/3600 RDIMM/ 3DS RDIMM. 1DPC up to 4800. 2DPC up to 4000(1R+1R). 2DPC up to 3600(1R+2R)/ (2R+2R). Maximum 6144GB . . * Refer to support page for more information. . Expansion Slots. . Up to 5 PCIe Gen5 slots + 1 OCP3.0. 2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL. 1 x PCIe Gen5 x8, LP. 1 x OCP 3.0 Slot ( (PCIe Gen5 x16). . Storage. . Storage Controller : CPU Integrated. Optional kits Controller :. Broadcom Mega RAID 9560-16i. ASUS PIKE II 3008-8i 8-port SAS 12G HBA card. . Drive Bays. . Front bays:. 12 x 3.5' hot-swap drive bays. Support up to 12NVMe/SAS/SATA. Rear bays: 2 x 2.5' SATA hot-swap drive bays. . *SAS support only from optional SAS HBA/RAID. card 2 x M.2 connectors. . Networking. . 1 x Dual Port Intel I350-AM2 GbE LAN Controller. 1 x Management Port. . Graphic. . Up to 4 single-slot or 2 double-slot GPU cards. . Multi-GPU Support. . Please find the latest GPU support from https://servers.asus.com/support/GPU. . Front I/O Ports. . 2 x USB 3.2 Gen1 ports. 1 x VGA port. . Rear I/O Ports. . 2 x USB 3.2 Gen1 ports. 1 x VGA port. 1 x Management port. 2 x 1GbE LAN ports. . Switch/LED. . Front:. 1 x Power Button/LED. 1 x Reset Switch. 1 x Location Button/LED. 1 x HDD Access LED. 1 x Message LED. LAN 1-2 LED. Rear:. 1 x Port80 LED (Q-Code). 1 x Power Button/LED. 1 x Location Button/LED. 1 x Message LED. . OS Support. . Please find the latest OS support from https://servers.asus.com/support/os. . Management Solution. . ASUS Control Center. ASUS ASMB11-iKVM (on-board). . Regulatory Compliance. . CB, CE, RCM, FCC(Class A). . Dimensions. . 840mm x 449mm x 88.1mm (2U). 33.07' x 17.68' x 3.47. . Form Factor. . 2U. . Weight. . (approximate). Net Weight: 17.95 kg. Gross Weight: 25.14 kg. . Environment. . Operating temperature: 10ºC - 35ºC. Non operating temperature: -40ºC - 70ºC. Non operating humidity: 20% - 90% (Non condensing). . Note. Operating Temperature based on configurations
