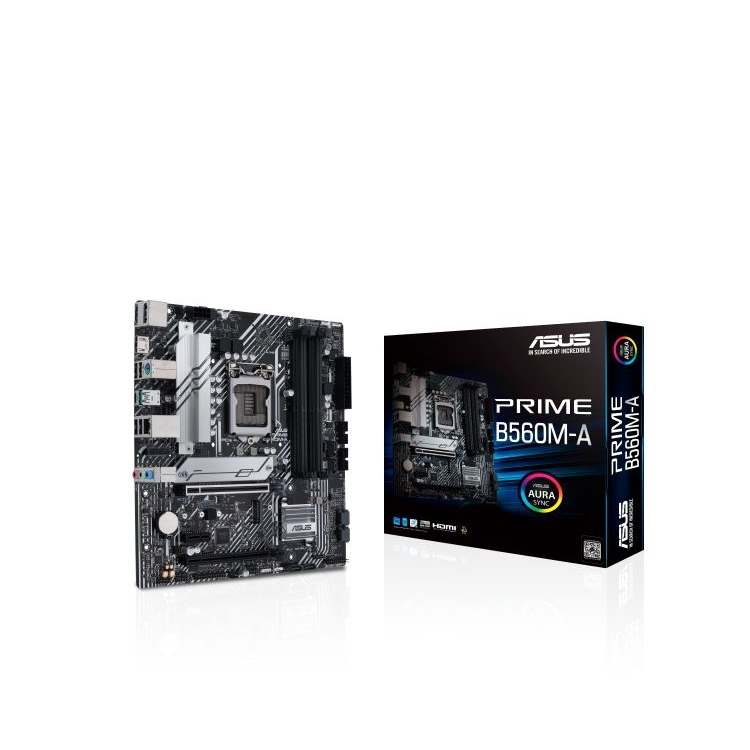

PLACA BASE PRIME B560M-A ASUS

Especificaciones:. . CPU. . Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors. Supports Intel® 14 nm CPU. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. Chipset. . Intel® B560 Chipset. . Memory. . DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem II. * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.. Graphics. . 1 x DisplayPort 1.4**. 2 x HDMI™ 2.0**. * Graphics specifications may vary between CPU types.. ** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.. *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.. Expansion Slots. . Intel® 11th &10th Gen Processors. 1 x PCIe 4.0/3.0 x16 slot(s)*. - Intel® 11th Gen processors support PCIe 4.0 x16. - Intel®10th Gen processors support PCIe 3.0 x16. Intel® B560 Chipset. 1 x PCIe 3.0 x16 slot (supports x4 mode)*. 1 x PCIe 3.0 x1 slots. * Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.. Storage. . Intel®11th Gen Processors. M.2_1 slot (Key M), type 2242/2260/2280. - Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs. Intel® B560 Chipset. M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*. 6 x SATA 6Gb/s ports. * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled.. Ethernet. . 1 x Intel® I219-V 1Gb Ethernet. ASUS LANGuard. . Wireless & Bluetooth. . V-M.2 slot only (Key E, CNVi & PCIe)*. * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately.. . USB. . Rear USB:Total 6 ports. 2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®). 4 x USB 2.0 port(s) (4 x Type-A). . 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports. 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports. 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports. Audio. . - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback''. Audio Features. - Audio Shielding. - Premium Japanese audio capacitors. - Dedicated audio PCB layers. ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. Back Panel I/O Ports. . 2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®). 4 x USB 2.0 port(s) (4 x Type-A). 1 x DisplayPort. 2 x HDMI™ port. 1 x Intel® I219-V 1Gb Ethernet port. 1 x V-M.2 slot (Key E). 3 x Audio jacks. 1 x PS/2 Keyboard/Mouse combo port. . Intrernal I/O Connectors. . Fan and Cooling related. 1 x 4-pin CPU Fan header(s). 1 x 4-pin CPU OPT Fan header(s). 2 x 4-pin Chassis Fan header(s). Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. Storage related. 2 x M.2 slots (Key M). 6 x SATA 6Gb/s ports. USB. 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports. 1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports. 1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports. Miscellaneous. 2 x AURA Addressable Gen 2 header(s). 2 x AURA RGB header(s). 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x LPT header. 1 x S/PDIF Out header. 1 x SPI TPM header (14-1pin). 1 x 20-3 pin System Panel header with Chassis intrude function. Form Factor. . microATX. 24.4cm x 23.4cm
