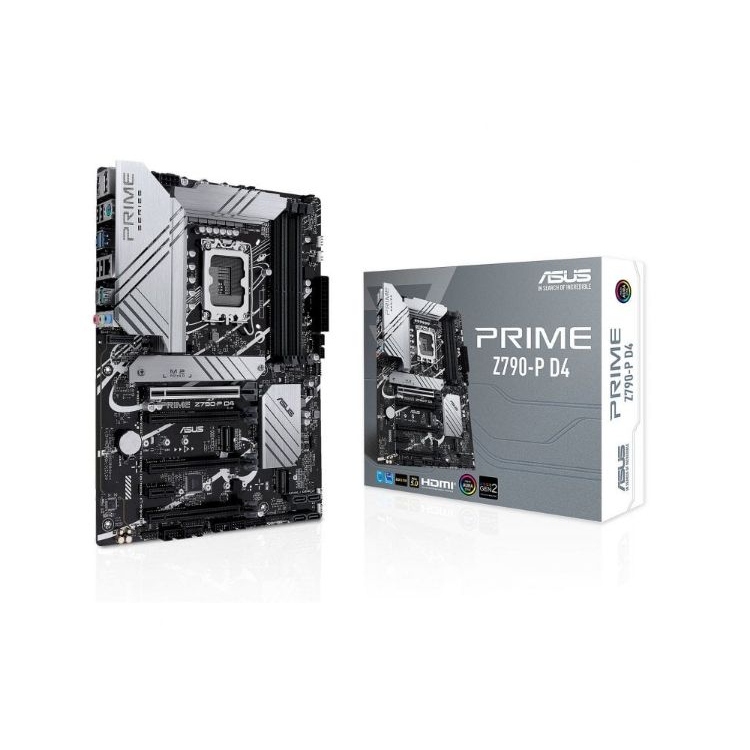

ASUS Placa Base PRIME Z790-P D4 ATX 1700

Zócalo Intel® LGA 1700: compatible con los procesadores Intel® de 12.ª y 13.ª Gen. Solución de alimentación mejorada: 14 + 1 DrMOS, PCB de seis capas, conectores ProCool, bobinas de aleación y condensadores duraderos para un suministro de energía estable.. Conectividad de última generación: PCIe® 5.0, Ethernet Realtek de 2,5 Gb, USB 3.2 Gen2x2 tipo C®, panel frontal con USB 3.2 Gen 2 tipo C®, compatibilidad con cabezal Thunderbolt™ (USB4®), 3 PCIe® 4.0 M.2. ASUS OptiMem II: enrutamiento cuidadoso de trazas y vías, además de optimizaciones de la capa de fondo para preservar la integridad de la señal y mejorar el overclocking de la memoria. Refrigeración completa: disipadores térmicos del VRM de gran tamaño, disipador térmico de M.2 flexible, disipador térmico pasivo PCH, cabezales de ventiladores híbridos y Fan Xpert 4 con AI Cooling II.. . Especificaciones:. . CPU. . Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*. Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**. * Refer to www.asus.com for CPU support list.. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.. . Chipset. . Intel® Z790 Chipset. . Memoria. . 4 x DIMM, Max. 128GB, DDR4 5333(OC)/ 5133(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4700(OC)/ 4600(OC)/ 4500(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory*. Dual Channel Memory Architecture. Supports Intel® Extreme Memory Profile (XMP). OptiMem II. * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.. . Gráficos. . 1 x DisplayPort**. 1 x HDMI® port*** . *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.. *** Supports 4K@60Hz as specified in HDMI 2.1.. . Ranuras de expansión. . Intel® 13th & 12th Gen Processors*. 1 x PCIe 5.0 x16 slot. Intel® Z790 Chipset. 3 x PCIe 4.0 x16 slots (support x4 mode). 1 x PCIe 3.0 x1 slot. * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).. - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.. . Almacenamiento. . Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*. Intel® 13th & 12th Gen Processors. M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode). Intel® Z790 Chipset. M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode). M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes). 4 x SATA 6Gb/s ports. * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.. . Ethernet. . 1 x Realtek 2.5Gb Ethernet. . USB. . Rear USB (Total 8 ports). 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 1 x USB 3.2 Gen 2 port (1 x Type-A). 2 x USB 3.2 Gen 1 ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). Front USB (Total 9 ports). 1 x USB 3.2 Gen 2 connector (supports USB Type-C®). 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.. * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.. . Audio. . Realtek 7.1 Surround Sound High Definition Audio CODEC*. - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking. - Supports up to 24-Bit/192 kHz playback. Audio Features. - Audio Shielding. - Premium audio capacitors. - Dedicated audio PCB layers. * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.. . Puertos de E/S del panel posterior. . 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®). 1 x USB 3.2 Gen 2 port (1 x Type-A). 2 x USB 3.2 Gen 1 ports (2 x Type-A). 4 x USB 2.0 ports (4 x Type-A). 1 x DisplayPort. 1 x HDMI® port. 1 x Vertical M.2 slot (Key E). 1 x Realtek 2.5Gb Ethernet port. 3 x Audio jacks. 1 x PS/2 Keyboard/Mouse combo port. . Conectores de E/S internos. . Fan and Cooling related. 1 x 4-pin CPU Fan header. 1 x 4-pin CPU OPT Fan header. 1 x 4-pin AIO Pump header. 3 x 4-pin Chassis Fan headers. Power related. 1 x 24-pin Main Power connector. 1 x 8-pin +12V Power connector. 1 x 4-pin +12V Power connector. Storage related. 3 x M.2 slots (Key M). 4 x SATA 6Gb/s ports. USB. 1 x USB 3.2 Gen 2 connector (supports USB Type-C®). 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports. 2 x USB 2.0 headers support 4 additional USB 2.0 ports. Miscellaneous. 3 x Addressable Gen 2 headers. 1 x Aura RGB header. 1 x Clear CMOS header. 1 x COM Port header. 1 x Front Panel Audio header (AAFP). 1 x S/PDIF Out header. 1 x SPI TPM header (14-1pin). 1 x 20-5pin System Panel header. 1 x Thunderbolt™ (USB4®) Header. . BIOS. . 192 (128+64) Mb Flash ROM, UEFI AMI BIOS. . Manejabilidad. . WOL by PME, PXE. . Factor de forma. . ATX Form Factor. 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
